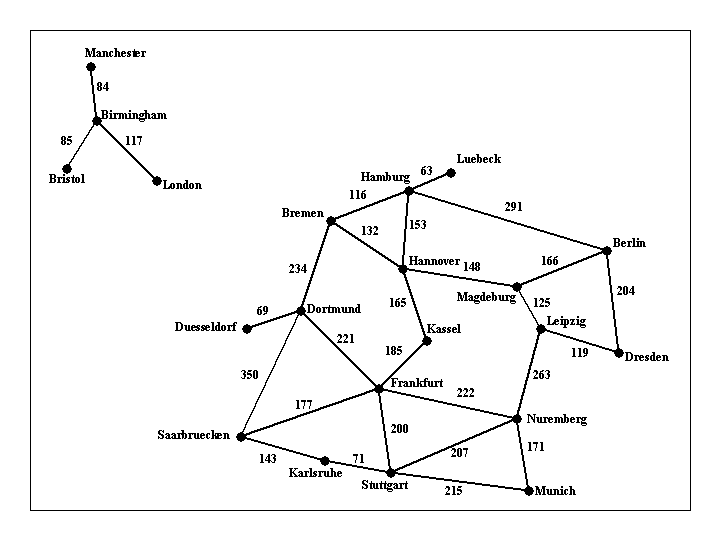

Figure 1: Graphical representation of information in input1.txt
Implement a program that can find a route between any two
cities using state space search. Your program will be called find_route, and will take exactly
commandline arguments as follows:
If heuristic is not provided then program must do uninformed search.
Argument
input_filename
is the name of a text file such as, that describes road connections
between cities in some part of the
world. For example, the road system described by file input1.txt
can
be
visualized in Figure 1 shown above. You can assume that the input file
is formatted in the same way as input1.txt: each line contains three
items. The last line contains the items "END OF INPUT", and that is how
the program can detect that it has reached the end of the file. The
other lines of the file contain, in this order, a source city, a
destination city, and the length in kilometers of the road connecting
directly those two cities. Each city name will be a single word (for
example, we will use New_York instead of New York), consisting of upper
and lowercase letters and possibly underscores.
IMPORTANT NOTE:
MULTIPLE INPUT FILES WILL BE USED TO GRADE THE
ASSIGNMENT, FILE IS JUST AN EXAMPLE. YOUR CODE SHOULD WORK
WITH ANY INPUT FILE FORMATTED AS SPECIFIED ABOVE.
The program will compute a route between the origin city and the
destination city, and will print out both the length of the route and
the list of all cities that lie on that route. It should also display
the number of nodes expanded and nodes generated. For example,
find_route input1.txt Bremen Kassel
should have the following output:
Nodes Popped: 12
Nodes Expanded: 6
Nodes Generated: 20
Distance: 297.0 km
Route:
Bremen to Hannover, 132.0 km
Hannover to Kassel, 165.0 km
For full credit, you should produce outputs identical in format to the
above two examples.
If a heuristic file is provided then
program must perform Informed search. The heuristic file gives the
estimate of
what the cost could be to get to the given destination from any start
state (note this is just an estimate). In this case the command line
would look like
find_route input1.txt Bremen Kassel h_kassel.txt
Here the last argument contains a text file what has the heuristic
values for every state wrt the given destination city (note different
destinations will need different heuristic values). For example, you
have been provided a sample file h_kassel.txt
which gives the heuristic value for
every state (assuming kassel is the
goal).
Your program should use this information to reduce the number of nodes
it ends up expanding. Other than that, the solution returned by the
program should be the same as the uninformed version. For example,
find_route input1.txt Bremen Kassel h_kassel.txt
should have the following output:
Nodes Popped: 3
Nodes Expanded: 2
Nodes Generated: 8
Distance: 297.0 km
Route:
Bremen to Hannover, 132.0 km
Hannover to Kassel, 165.0 km
Grading
The assignments will be graded out of 100 points.
40 points: The program
always finds a route between the
origin and the destination, as long as such a route exists.
15 points: The program
terminates and reports that no route can be found when indeed no route
exists that connects source and destination (e.g., if source is London
and destination is Berlin, in the above example).
25 points: In addition to
the above requirements, the
program always returns optimal routes. In other words, no shorter route
exists than the one reported by the program.
20 points: Correct
implementation of any informed search
method. Please note that you only need to make one submission that
meets this and all previous requirements to get credit for all the
parts.
Negative points: penalty points will be awarded by the
instructor and
TA generously and at will, for issues such as: submission not including
precise and accurate instructions for
how to run the code, wrong compression format for the submission, or
other failures to comply with the instructions given for this
assignment. Partial credit for incorrect solutions will be given ONLY
for code that is well designed and well documented. Code that is badly
designed and badly documented can still get credit only as long as it
accomplishes the required tasks.
Supplementary Information
Traces of sample runs are provided here. These are provided to show how
the nodes are visited and how counters are updated for sample cases.
You DO NOT need to generate such output.
For each part: Implementations in C, C++, Java, and Python will
be accepted. Points will be taken off
for failure to comply
with this requirement.
Create a ZIPPED folder called <net-id>_assmt1.zip (no other
forms
of compression
accepted, contact the instructor or TA if you do not know how to
produce .zip files).
The folder should contain just the source code (No need to submit
compiled binaries or any test files). It should also contain a file
called readme.txt, which
should specify precisely:
Name and UTA ID of the student.
What programming language is used for this task. (also mention if
the code is
omega compatible)
How the code is structured.
How to run the code, including very specific compilation
instructions,
if compilation is needed. Instructions such as "compile using g++" are
NOT considered specific if the TA needs to do additional steps to get
your code to run.
Insufficient or unclear instructions will be penalized.
Code that
the TA cannot run gets AT MOST 75% credit.
